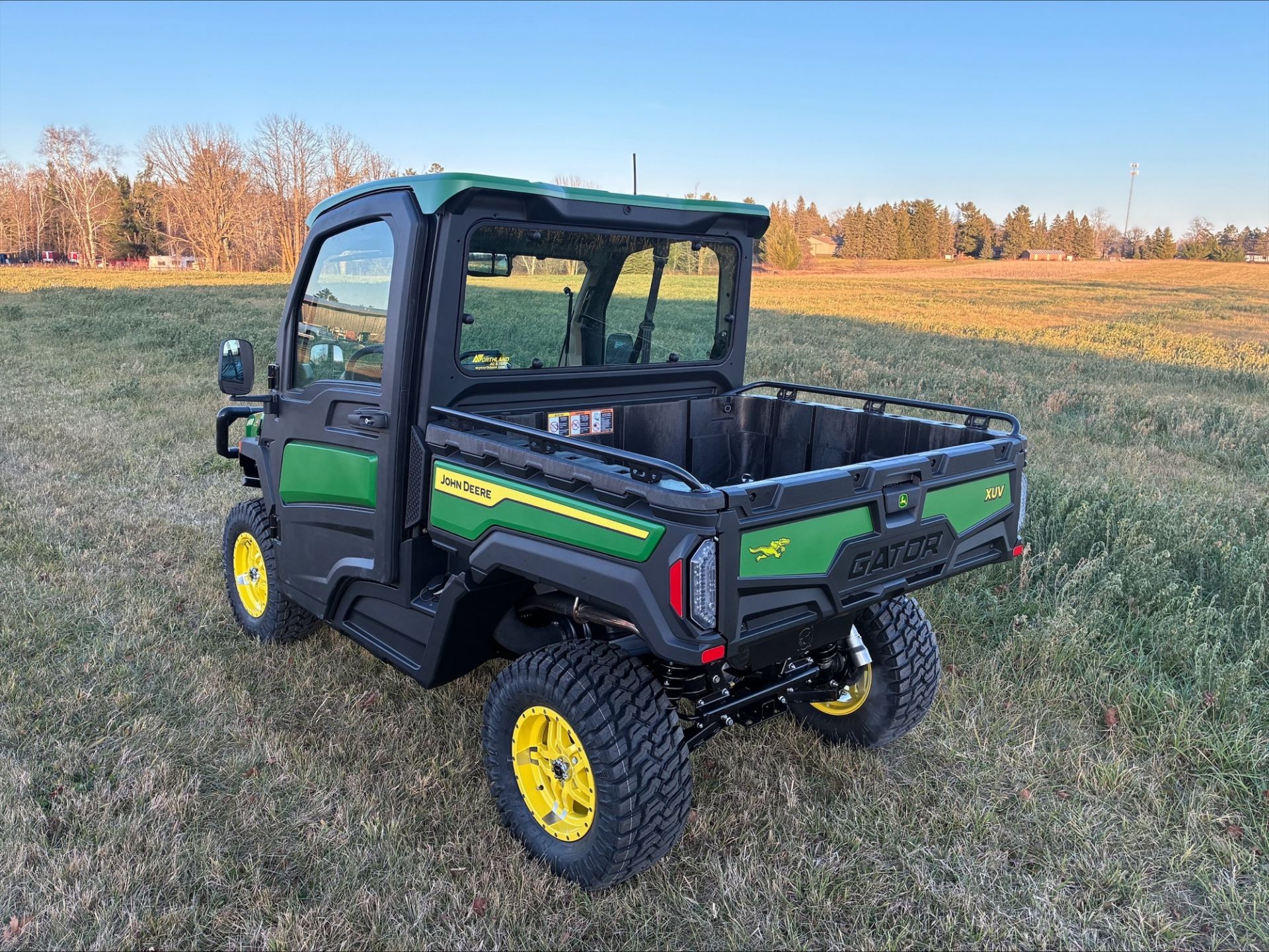

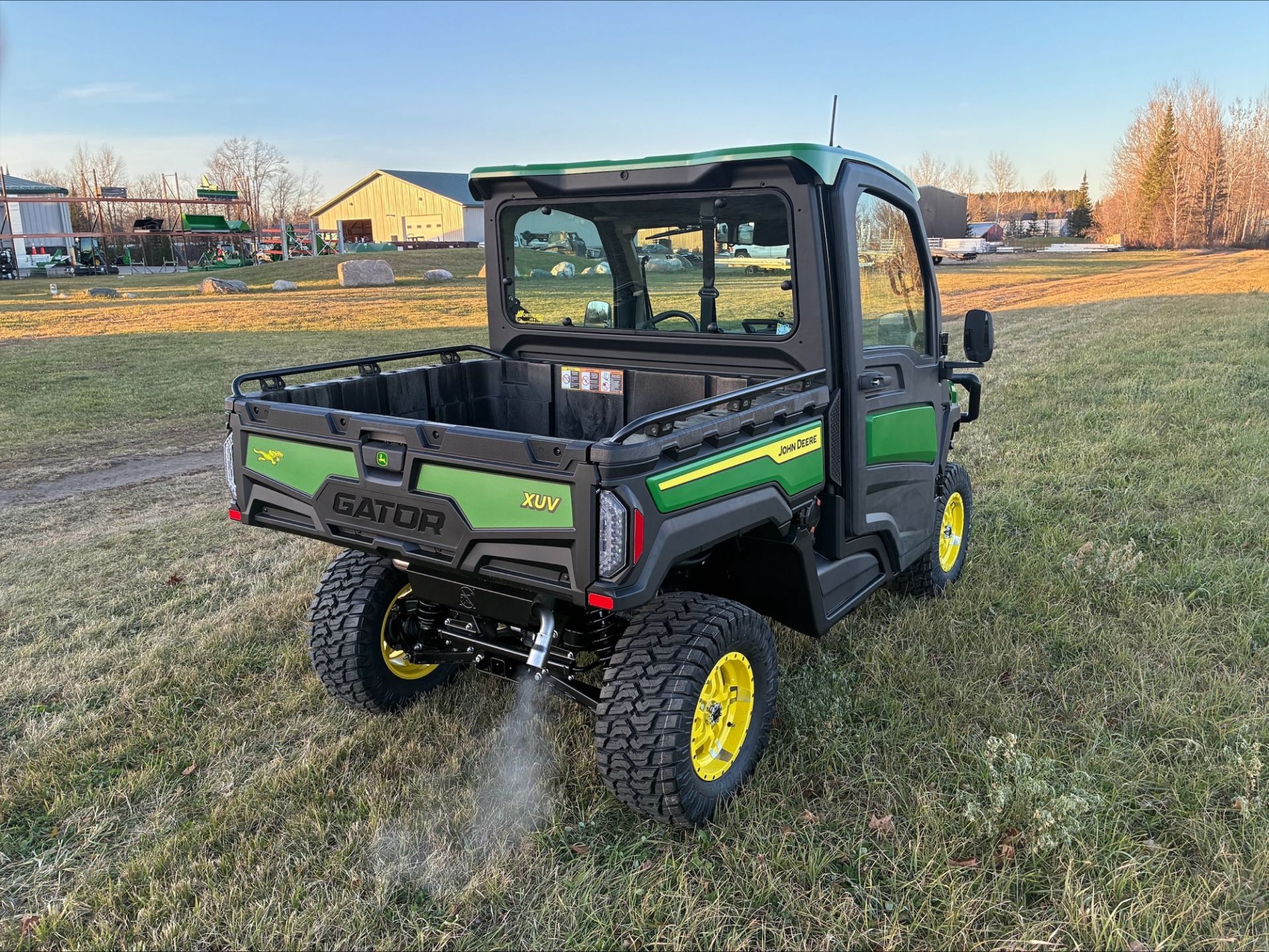

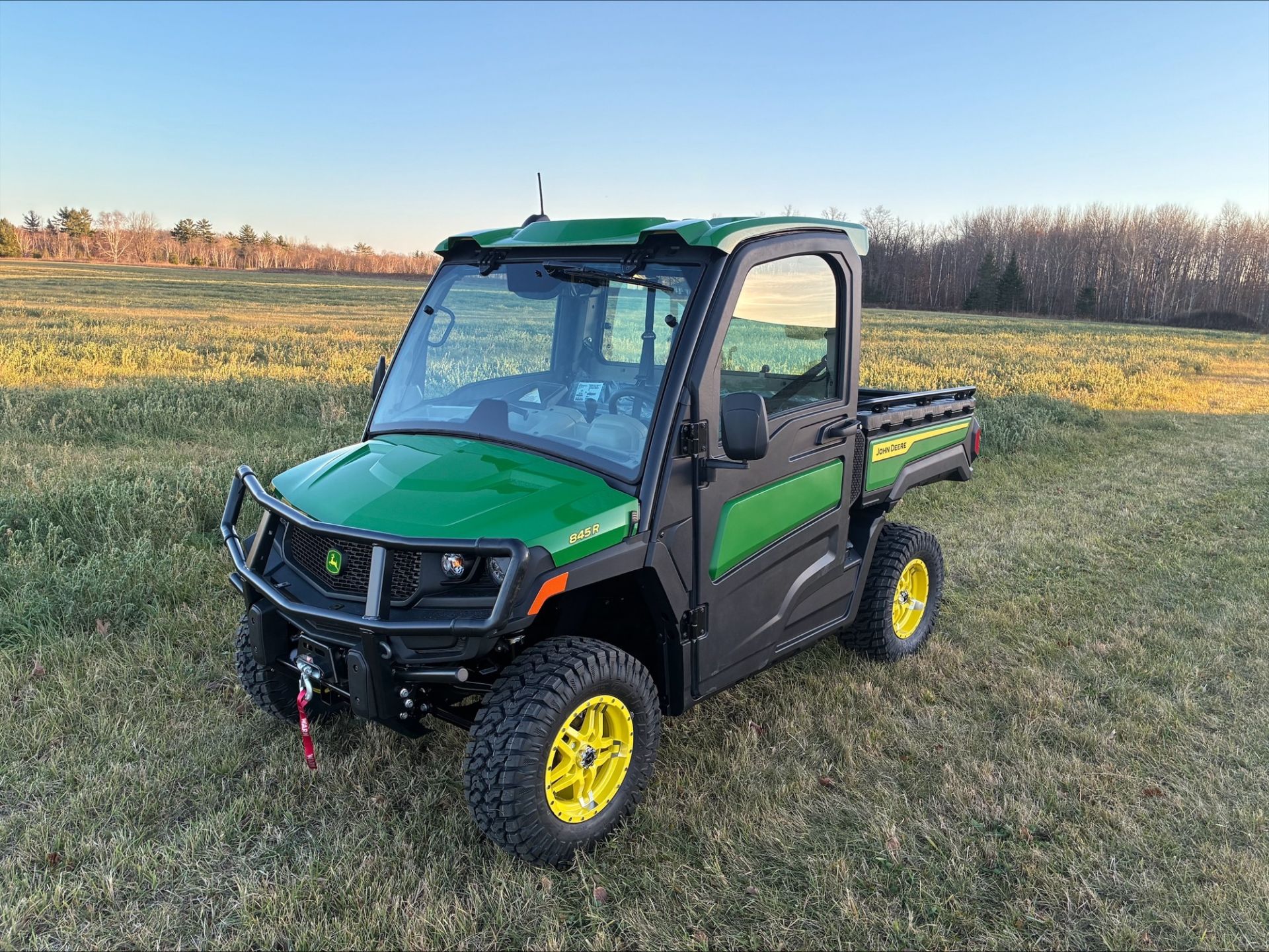

John Deere Gator XUV 845R
The John Deere Gator XUV 845R is a full-size, three-passenger crossover utility vehicle (UTV) powered by a 53-horsepower, 812cc gasoline engine . It is available in multiple trims, with being the most luxurious.Power meets precision. Explore the John Deere Gator XUV 845R – a 54 hp diesel utility vehicle with 1,400 lb payload, 2,000 lb towing, and 4WD. Perfect for farms, ranches, and job sites.
Specifications
| Feature | Specification |
|---|---|
| Engine | 812cc, 3-cylinder, 4-cycle gas, liquid-cooled, EFI |
| Horsepower | 53 hp @ 6000 rpm |
| Torque | 51 ft.-lb. (69 Nm) |
| Transmission | Continuously Variable Transmission (CVT) with P, H, L, N, R |
| Drive System | On-demand 4WD with switch-activated locking rear differential & limited slip front diff |
| Top Speed | 45+ mph (72 kph) |
| Fuel Capacity | 11.2 gallons (42.4 L) |
| Curb Weight | 2,512 lb (1,142 kg) |
| Payload Capacity | 888 lb (400 kg) |
| Towing Capacity | 4,000 lb (1,814 kg) in low gear |
| Cargo Box Capacity | 1,000 lb (454 kg) |
| Ground Clearance | 12.2 inches (309 mm) |
| Wheelbase | 87.0 inches (2,211 mm) |
Engine & Drivetrain
-
Engine Performance: The 812cc triple-cylinder engine with Dual Overhead Cams (DOHC) provides 53 hp and 51 ft-lb of torque, optimized for low-range torque for hauling and high-range speed for faster travel .
-

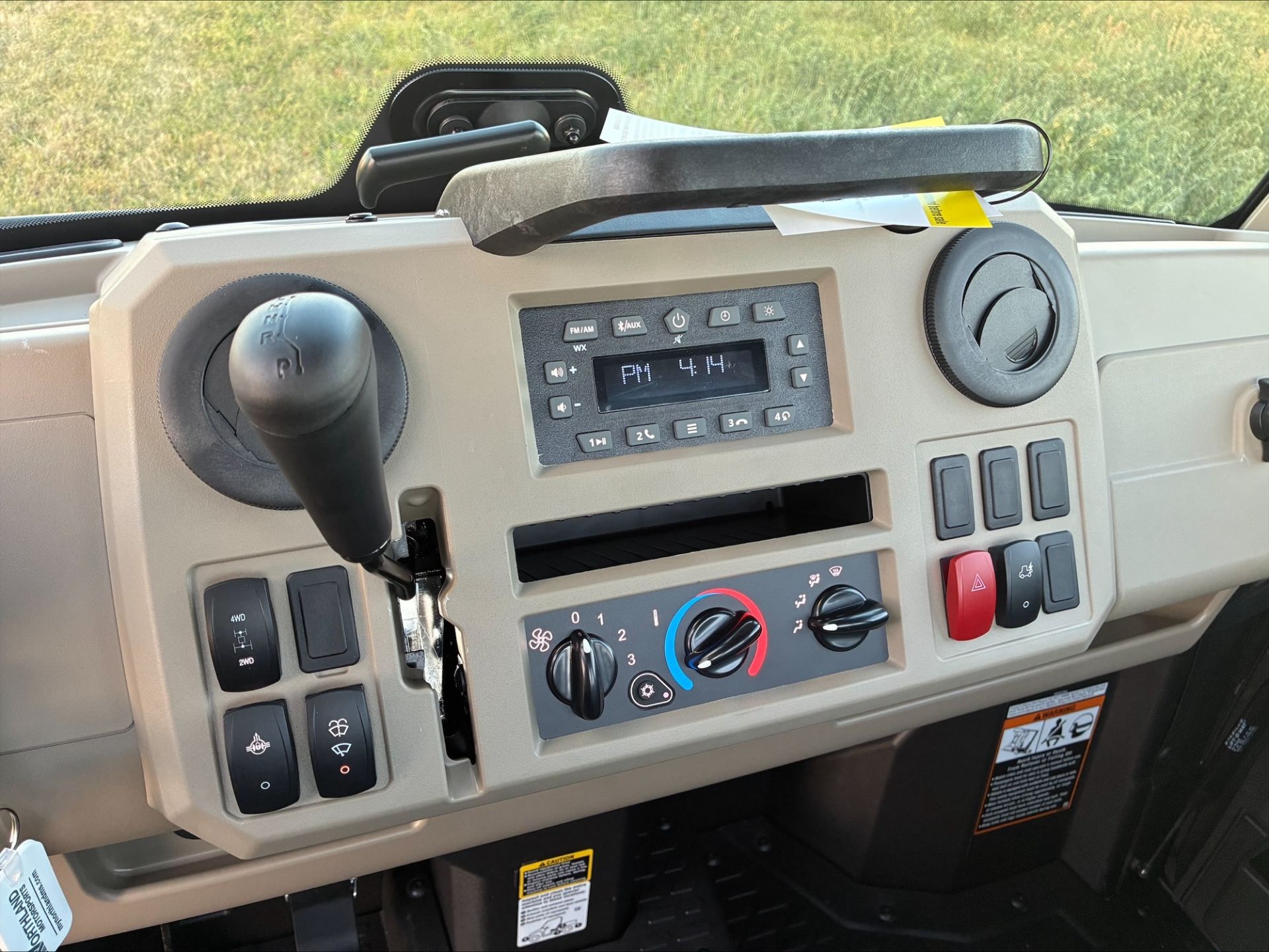

CVT Transmission: Features an automotive-style integrated park position and a switch for activating the rear differential lock. It also includes a high/low range selector .
-
4WD System: On-demand system allows switching between 2WD and 4WD with a dash switch. The front differential is a limited-slip unit, while the rear is a positive locking differential .
Suspension, Brakes & Steering
-
Suspension: Fully independent dual A-arm suspension front and rear.
-
Front Travel: 7.9 inches (200.7 mm)
-
Rear Travel: 9.1 inches (231.1 mm) .
-
-
Brakes: Four-wheel hydraulic disc brakes with twin-piston front calipers for strong stopping power .
-
Steering: Electric Power Assisted Steering (EPAS) is standard on the Signature and R-trim models, providing smooth handling and reduced steering effort .
Signature Edition Exclusive Features
This trim is distinguished by premium comfort and technology upgrades :
-
Interior: Genuine two-tone leather 40/60 split bench seat with “Signature Edition” embroidery.
-
Infotainment: Factory-installed 6.4-inch touchscreen system compatible with Apple CarPlay and Android Auto, featuring a 7-speaker Harman-tuned sound system, AM/FM, and SiriusXM .
-
Convenience: Rear-facing camera displayed on the touchscreen, power-sliding rear window, and a leather-wrapped grab handle .
-
Lighting: Front roof-mounted LED driving lights and LED headlights.
-
HVAC: Fully integrated heating, ventilation, and air conditioning (HVAC) system with a sound-dampening headliner .
Utility & Cargo Bed
-
Construction: Durable, high-density polyethylene copolymer composite box that resists dents and rust .
-
Dimensions: 43.3″ L x 54.8″ W x 13.5″ H (18.5 cu. ft.) .
-
Power Lift: Switch-activated cargo box power lift standard on R-Trim and Signature Edition .
-
Tailgate: Removable, bottom-hinged design with a flat work surface, ruler, V-channel for cutting pipe, and clamping pockets .
-
Power Port: Switch-activated 12V/20-amp SAE 2-pin power port in the cargo box .
Protection & Safety
-
OPS (Operator Protection Structure): Steel tubular structure certified to ANSI, ISO, and OSHA ROPS standards. Includes full doors with roll-down windows .
-

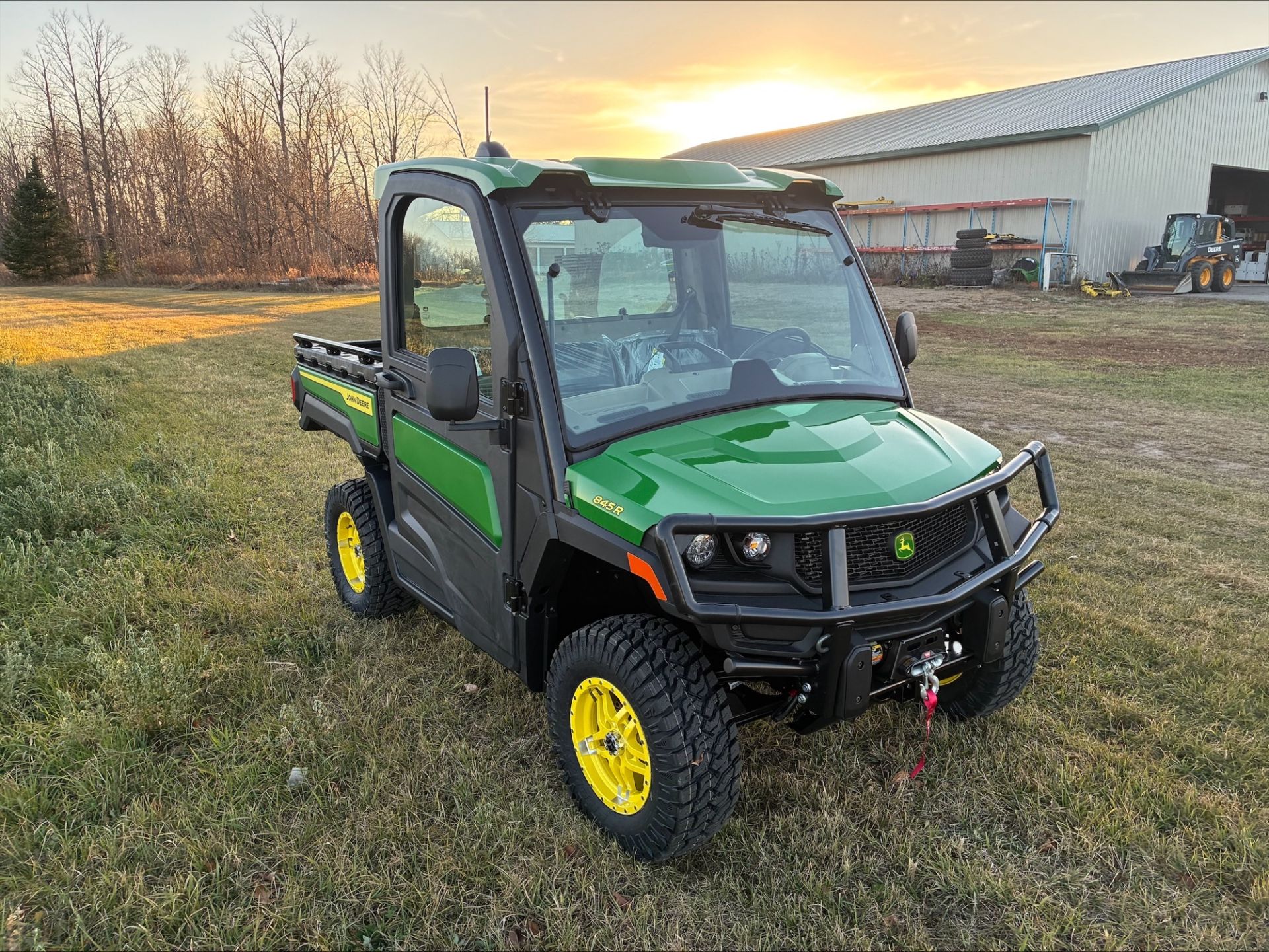

Protection Package: Full underbody skid plate, Bumper Pro brush guard, rear bumper, and rear fender guards .
-
Lighting: Dual-beam LED headlights, LED tail/brake lights, LED reverse lights, and amber turn signals .
Warranty & Technology Options
-
Warranty: 12-month/1,000-hour basic warranty (extendable up to 5 years with Powergard protection) .
-
Precision Ag Ready: Factory option for GreenStar™ and AutoTrac™ readiness, allowing integration with JDLink and the John Deere Operations Center for tasks like boundary mapping .
FAQs
1. What is the John Deere Gator XUV 845R used for?
The John Deere Gator XUV 845R is a premium utility vehicle designed for farming, ranching, landscaping, construction, hunting, and recreational trail riding. It combines off-road capability with a comfortable enclosed cab.
2. How much horsepower does the Gator XUV 845R have?
The XUV 845R is powered by an 812cc EFI gasoline engine that produces 53 horsepower.
3. What is the towing capacity of the John Deere Gator XUV 845R?
The vehicle can tow up to 4,000 lbs (1,814 kg) when properly equipped.
4. How much weight can the cargo box carry?
The composite cargo box has a maximum payload capacity of 1,000 lbs (454 kg).
5. Does the John Deere Gator XUV 845R have four-wheel drive?
Yes. It comes standard with selectable 4WD and a rear differential lock for improved traction on rough terrain.
6. How many people can the XUV 845R seat?
The Gator XUV 845R comfortably seats three adults with a 40/60 split bench seat.
7. Does the XUV 845R include air conditioning?
Yes. The R model features a premium factory-installed cab with heating and air conditioning (HVAC) for year-round comfort.
8. What transmission does the John Deere Gator XUV 845R use?
It uses a Continuously Variable Transmission (CVT) with High, Low, Neutral, Reverse, and Park ranges.
9. What is the fuel capacity of the XUV 845R?
The fuel tank holds 11.2 gallons (42.4 liters) of gasoline.
10. What is the ground clearance of the Gator XUV 845R?
The XUV 845R offers 12 inches (305 mm) of ground clearance for navigating rough terrain.
