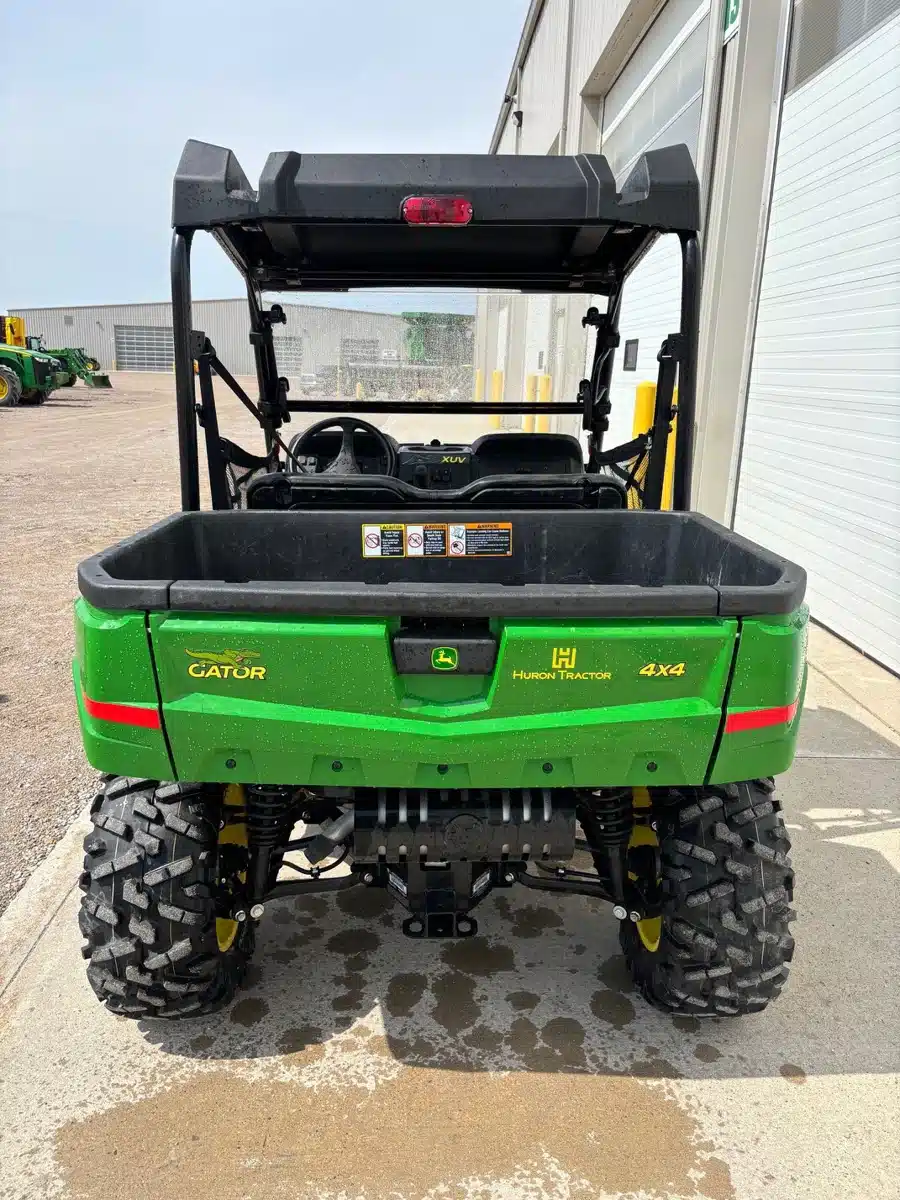

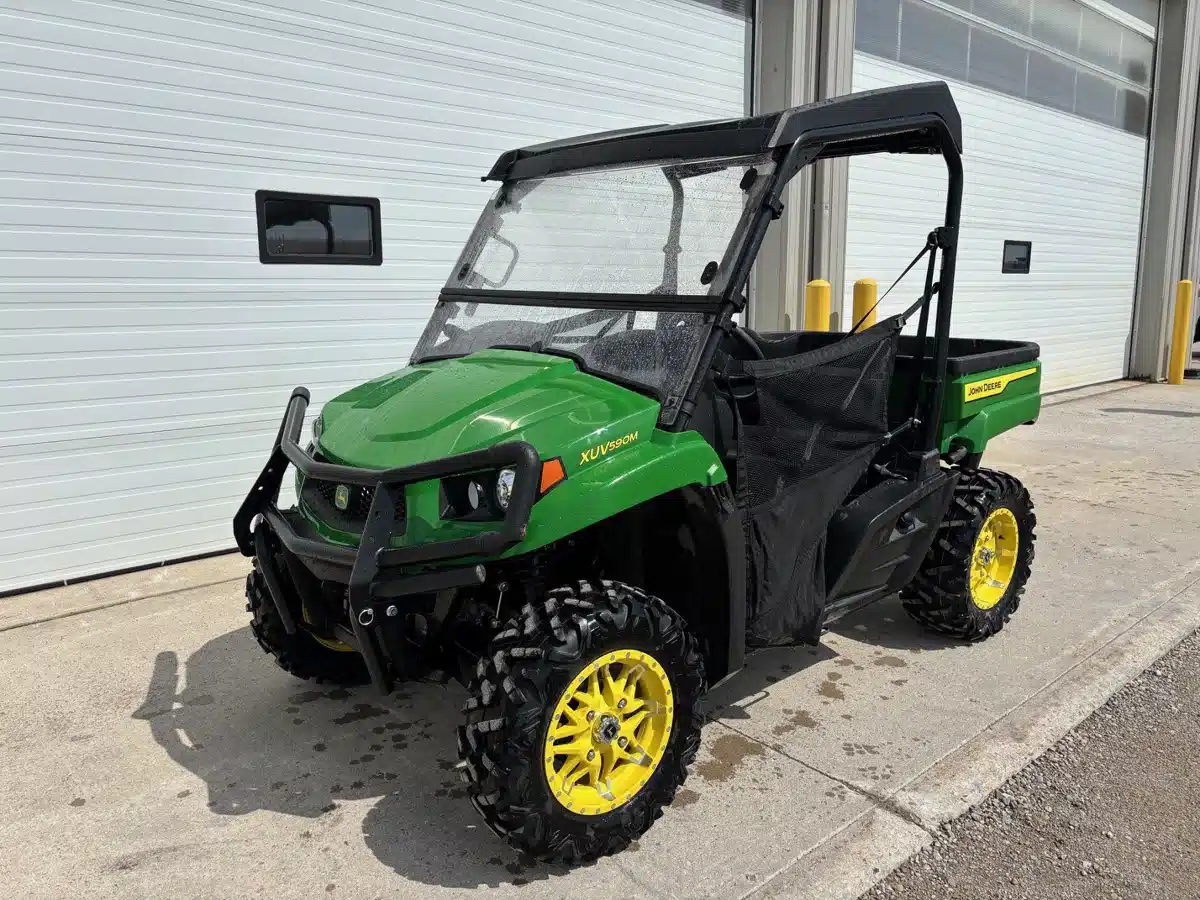

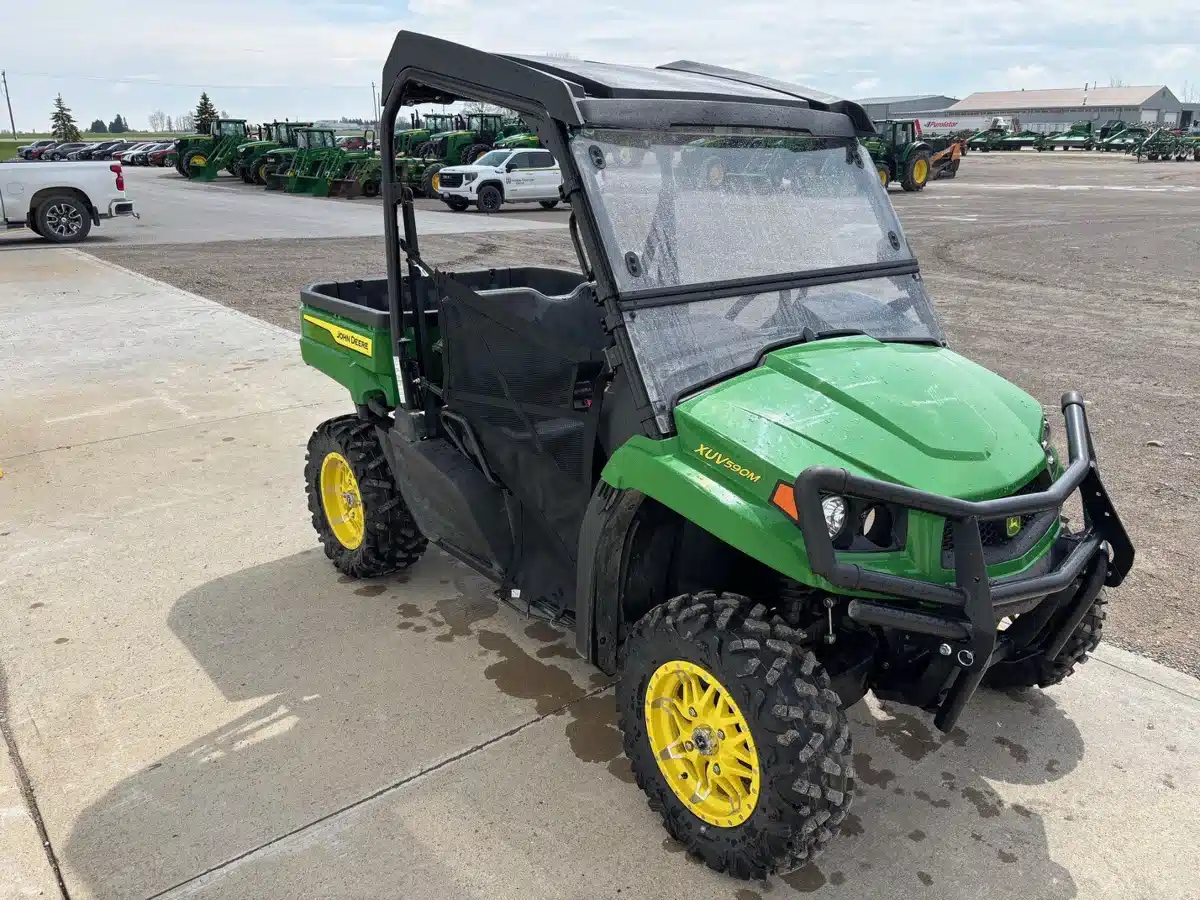

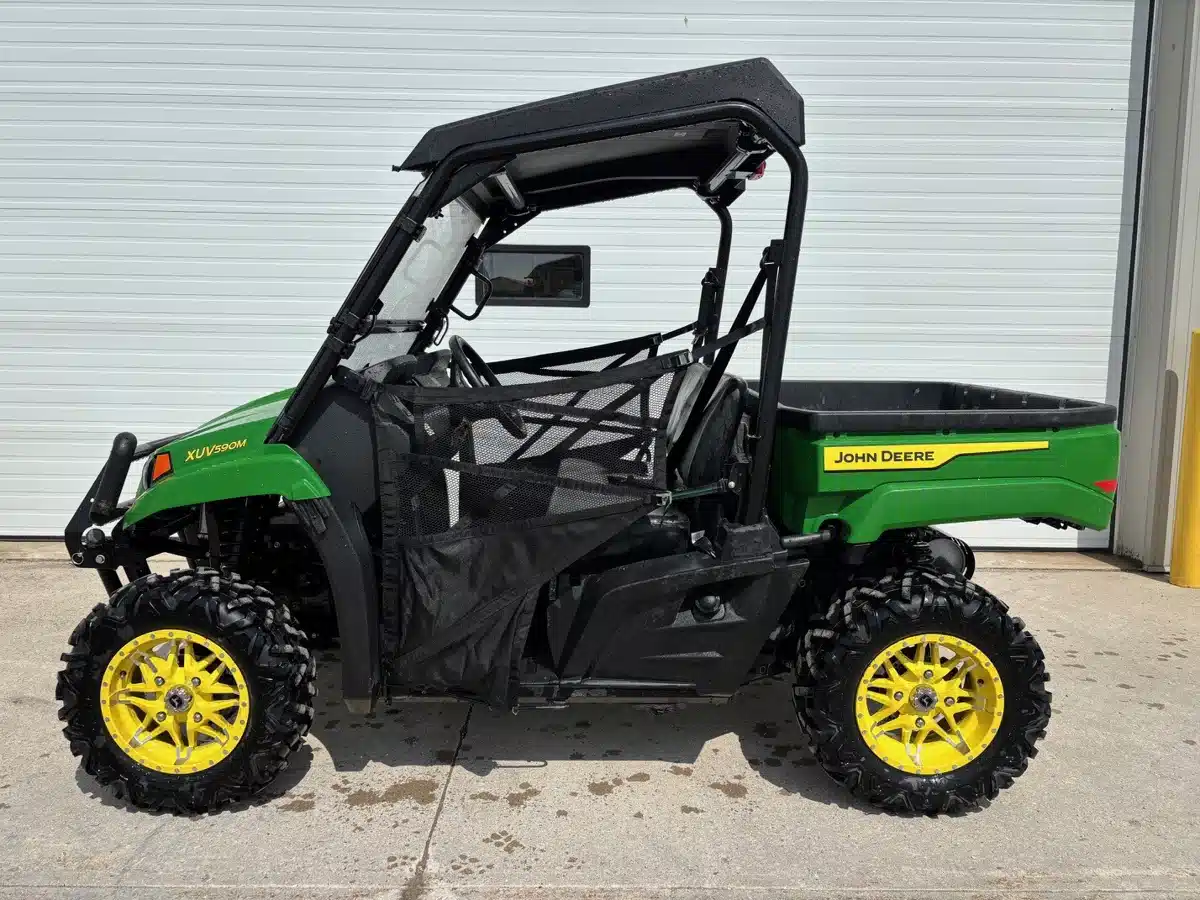

John Deere XUV 590M UTVs
Based on the information available, the John Deere XUV590M is a mid-size crossover utility vehicle (UTV) designed for a balance of work capability and recreational agility. It features numerous updates for the model year, including a revised suspension system, updated powertrain cooling, improved air intakes, and better underbody protection .Below is a detailed breakdown of the product’s specifications and features.
Specifications
| Category | Specification |
|---|---|
| Manufacturer | John Deere |
| Model Year | 2025 |
| Make | John Deere 590M |
| Engine | 586cc, inline twin-cylinder, 4-cycle, gas, liquid-cooled with Electronic Fuel Injection (EFI) |
| Horsepower | 23.8 kW (32 hp) at 5600 rpm |
| Top Speed | More than 77 km/h (48 mph) |
| Transmission | Continuously Variable Transmission (CVT) with full clutch enclosure. Features Park, High, Low, Neutral, Reverse |
| Drive System | Selectable 4WD with a limited-slip front differential and electronic rear differential lock |
| Steering | Rack-and-pinion with standard power steering. An optional Electric Power-Assist Steering (EPAS) system is available . |
| Suspension | Fully independent 4-wheel suspension with 203 mm (8 in.) of travel. Features dual A-arms in the front and a lower A-arm with upper camber link in the rear, both with adjustable coil-over shocks and an anti-roll bar . |
| Brakes | 196 mm (7.7 in.) ventilated 4-wheel stainless steel disc brakes with hydraulic twin-piston calipers . |
| Tires (Standard) | 25″ Terra Hawk all-terrain tires on 12″ steel wheels . |

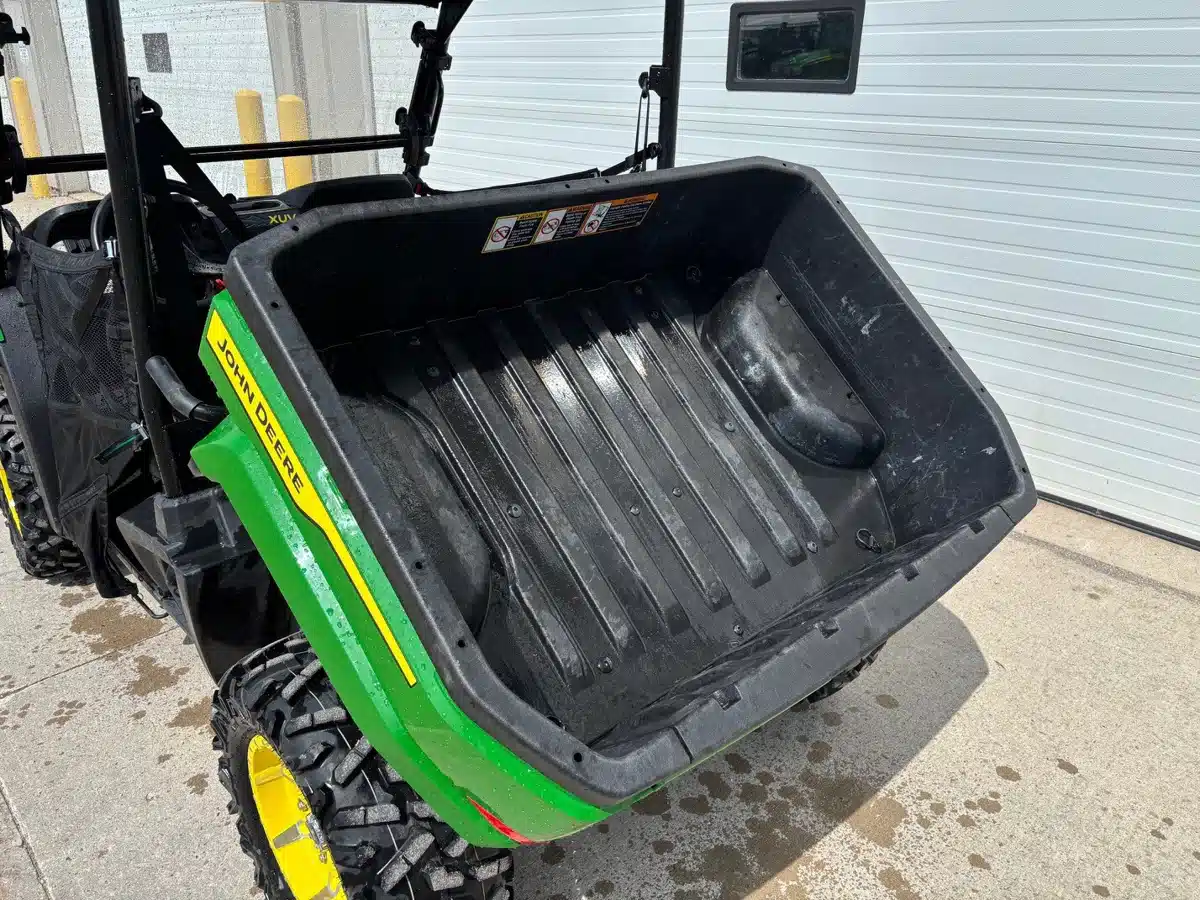

| Cargo Box | High-density composite material, 500 lb (227 kg) capacity. Features a one-handed, tool-free removal tailgate and a manual tilt function . |
| Towing Capacity | 1,500 lb (680 kg) . |
| Payload Capacity | 900 lb (408 kg) . |
| Fuel Capacity | 28 L (7.4 US gal.) . |
| Ground Clearance | 267 mm (10.5 in.) . |
| Vehicle Dimensions (L x W x H) | 113 in. x 56.5 in. x 73.5 in. (2.9m x 1.4m x 1.9m) . |
| Weight | Approx. 1,421 lb (645 kg) . |

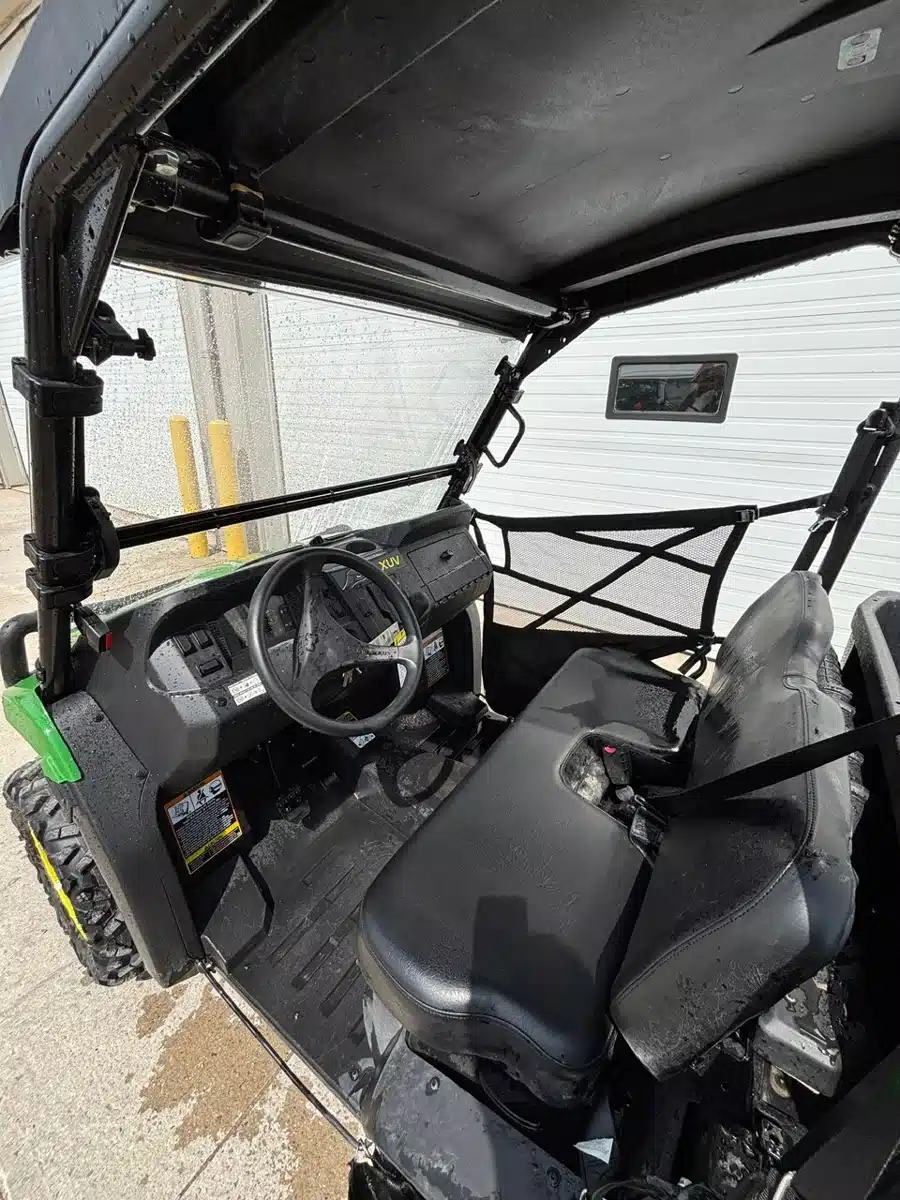

| Seating Capacity | 2 (Bench seat) . |
| Warranty | 12-month / 1,000-hour basic warranty . |
Key Features For John Deere XUV 590M UTVs
Performance and Powertrain
-
Engine: Powered by a 586cc, liquid-cooled, inline-twin engine that produces 32 hp, designed for quick acceleration and a top speed of 48 mph . It is tested for reliable cold-weather starting down to -28.9°C (-20°F) .
-
Drivetrain: Features a precision-engineered CVT drivetrain with TEAM® industry clutches and a high-speed fan for longer belt life. The selectable 4WD and rear differential lock are engaged via an electronic dash switch for instant traction in challenging conditions .
-
Suspension & Handling: The four-wheel independent suspension is a key feature, developed in collaboration with engineering firms that consult with Formula 1®, NASCAR®, and INDYCAR® teams, providing a comfortable ride and excellent handling . The standard power steering significantly reduces steering effort .
FAQs
1. What is the John Deere XUV 590M used for?
The XUV 590M is a mid-size crossover utility vehicle designed for hauling, towing, farming tasks, landscaping, property maintenance, and light off-road work. It combines work capability with off-road performance.
2. How much horsepower does the XUV 590M have?
The John Deere XUV 590M is powered by a 586 cc, 2-cylinder EFI gas engine producing around 32 horsepower.
3. What is the top speed of the XUV 590M?
The XUV 590M can reach speeds of up to 48 mph (77 km/h) depending on terrain and load conditions.
4. What is the towing capacity of the XUV 590M?
It can tow up to 1,500 lbs (680 kg), making it suitable for trailers, equipment, and farm utility tasks.
5. How much cargo can the dump bed carry?
The cargo box has a capacity of about 500 lbs (227 kg) with a rugged composite dump bed designed for heavy-duty use.
6. Does the XUV 590M have 4WD?
Yes. It features an electronic switch-controlled 4WD system, allowing you to switch between 2WD and 4WD depending on terrain.
7. Is the XUV 590M good for rough terrain?
Yes. It has independent front and rear suspension (8 inches of travel), which provides a smooth ride over uneven ground, mud, gravel, and hills.
8. What type of transmission does it use?
It uses a CVT (continuously variable transmission) with Park, High, Low, Neutral, and Reverse modes for easy and smooth operation.
9. Does the John Deere 590M have power steering?
Yes, the XUV 590M includes electronic power steering, which makes handling easier, especially on rough terrain or when carrying heavy loads.
10. What is the fuel capacity?
The fuel tank holds about 7.4 gallons (28 liters), giving it good runtime for long workdays.
